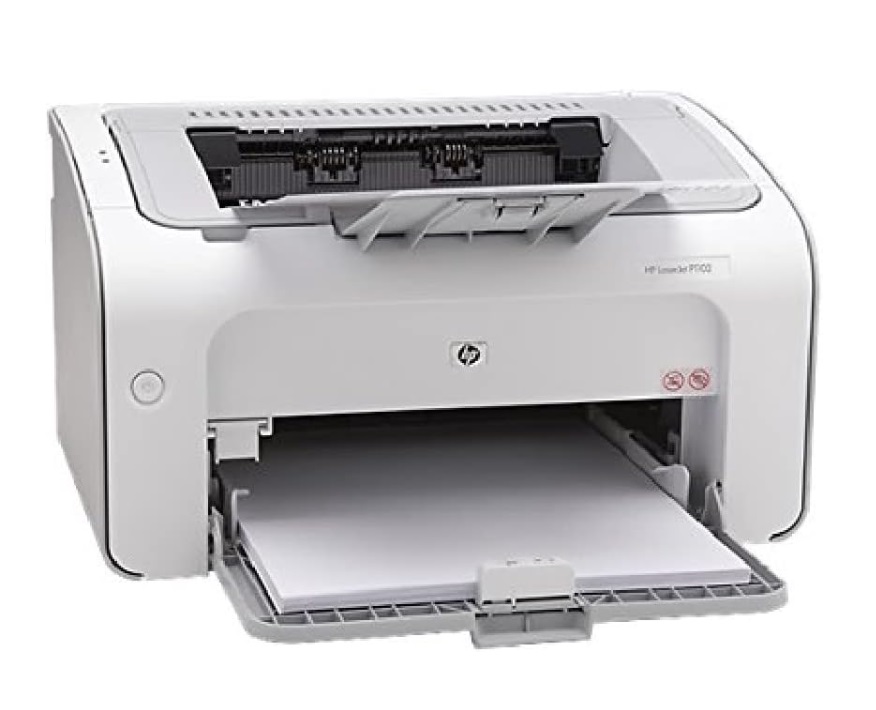

🖨️ HP LaserJet Pro P1102 / P1102w Desktop Mono Fleet
Product Specification: Reliable 18ppm compact desktop monochrome laser printer engine utilizing a fast, high-precision localized instant-on fuser core.
Production Year Range: Legacy Core Portfolio (Introduced 2010 / Maintained as an active B2B workhorse through 2026 fleet pools).
Usage Profile (User Targets): SOHO environments, retail checkout desks, SME offices, and remote logistics hubs requiring low-maintenance black-and-white print cycles.
🔧 Component Group
📝 Description
🔢 Malaysia MPN
🖼️ Photo
1. Toner Cartridge
Standard yield black cartridge with localized tracking microchips for MY region.
CE285A (HP 85A)
2. Imaging Drum Unit
OPC drum mechanism built directly into the cartridge core shell structure.
CE285A-OPC
3. Developer Assy
Internal magnetic roller core managing carbon charge thickness during sweeps.
P1102-MAGNET-DEV
4. Waste Toner Box
Overflow dry composite carbon reservoir built inside primary shell.
P1102-WTB-CELL
5. Tray 1 Pickup Roller
Upper manual multi-purpose prioritised manual bypass slot paper pickup tire.
RL1-2593-000CN
6. Tray 2 Pickup Roller
Main lower main input paper drawer D-shaped internal pickup roller tire.
RL1-2593-000CN
7. Paper Separation Roller
Base friction separation pad assembly built to prevent multiple page pull errors.
RM1-4006-000CN
8. Registration Roller
Internal secondary transport synchronization roller timing structural alignments.
RM1-6893-000CN
9. ADF Pickup Roller Kit
Not applicable for single-sheet flatbed layout configurations.
N/A (P1102 Desktop)
10. ADF Separation Pad
Not applicable for standard non-MFP entry desktop print models.
N/A (P1102 Desktop)
11. Paper Pickup Assembly
Base input tray paper lifter carriage system framework chassis modules.
RM1-6903-000CN
12. Fuser Assembly
Complete 220V alternative heat bonding module resolving print smudging.
RM1-6873-000CN
13. Fuser Fixing Film
High-durability internal thermal heating element protection sleeve film.
RM1-6873-FILM
14. Fuser Pressure Roller
Lower backing silicone rubber pressure roller resolving print fading faults.
LPR-P1102
15. Fuser Drive Gear
High-wear mechanical edge drive gear driving fuser system rotation loops.
RU2-0574-000CN
16. Exit Rollers
Upper output tray delivery face-down transport roller wheels.
RM1-6881-000CN
17. Laser Scanner Unit
Primary optical polygon laser scanner module resolving blank output errors.
RM1-6874-000CN
18. Formatter Board
Central data motherboard processing network link requests.
CE666-60001 (USB)
WiFi: CE667-60001
WiFi: CE667-60001
19. Engine Controller
DC low-voltage logic control card monitoring sensor feedback relays.
RM1-7484-000CN
20. Power Supply Unit
Internal power transformer system converter board fixing trip states.
RM1-6864-000CN
21. High-Voltage Board
Static current generation subsystem panel feeding transfer line charges.
RM1-6867-000CN
22. Main Drive Motor
Central driving electric motor array operating mechanical geartrain paths.
RL1-2615-000CN
23. Drive Gear Train
Lateral internal interlocking geartrain layout ensuring stable speeds.
P1102-GEAR-KIT
24. Paper Solenoid
Electromagnetic control solenoid regulating paper release timing blocks.
RK2-2731-000CN
25. Cassette Trays/Doors
150-sheet input tray deck extensions plus main front panel door flaps.
RM1-6898-000CN
