Epson LQ-310, LX-310, LQ-50, LX-50 Printer Spare Parts

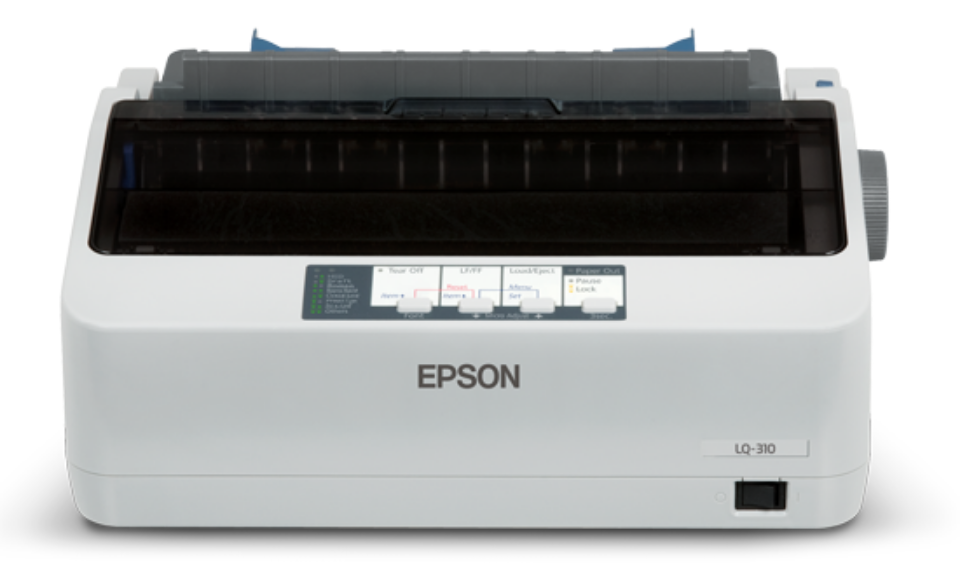

🖨️ Epson LQ-310, LX-310, LQ-50, LX-50 Dot-Matrix Series

Product Specification: Narrow-carriage high-velocity 9-pin and 24-pin impact dot-matrix printing engines utilizing a shared modular platform and mutual drive gear chassis layouts.
Production Year Range: Core Commercial Series (Maintained as an active contract leasing standard through 2026 fleet pools across Malaysia).
Usage Profile: Retail checkout terminals, continuous billing registries, transport dispatch offices, and logistics documentation desks.

🔧 Part Description

🔢 Product Code

📋 Model Compatibility

🖼️ Part Photo

1. Print Head

F111000

LQ-310 (shared with LQ-350)

2. Print Head Ribbon Cable

2143897

LQ-310 (connects print head to logic board — distinct from the print head itself)

3. Tractor Assembly

1575476

LX-310, LQ-310

4. Paper Feeder (PF) Gear

1577600

LX-310, LQ-310, LX1310, LQ1310, LX-50

5. Platen Advancement Knob

1529633

LQ-1310, LQ-310, LQ-50 (Gears & Rollers group)

6. Rear Detector PE Sensor

2143244

LQ-310, LX-310 (handles paper-end and feed sensing)

7. Control Panel Membrane & Window Sheet

1583149

LQ-310 (user interface button membrane and sheet)

8. Power Supply Unit (PSU)

2148993

LQ-310, LQ-1310

9. Paper Guide Support Bracket

1436557

LQ-310, LX-310

10. Carriage Guide Shaft (CR Guide)

1616687

LQ-310, LX-310

11. Ribbon Drive (RD) Assembly

1683757

LX-310, LQ-310

12. Paper Eject Assembly

1595122

LQ-310

13. Carriage Assembly

1624772

LQ-310

14. Timing Belt

1050422

LX-300+, LQ-300+, LX-310, LQ-310

15. Formatter Board

2171326

LQ-310

16. PF Roller (Type A)

1588627

LQ-310, LX-310, LQ-1310, LX-1310 (Gears & Rollers group)

17. PF Roller (Type B)

1579950

LQ-310, LX-310, LQ-1310, LX-1310 (Gears & Rollers group — different roller position from Type A; confirm which if only stocking one)

18. Top Cover Housing Assembly

PN subject to verification

LQ-310, LX-310

19. Cut Sheet Feeder Tray Guide Assembly

PN subject to verification

LQ-310

20. Ribbon Mask Shield

PN subject to verification

LQ-310

21. Platen Roller

PN subject to verification

LQ-310, LX-310

22. Platen Gear

PN subject to verification

LX-310, LQ-310, LX1310, LQ1310
