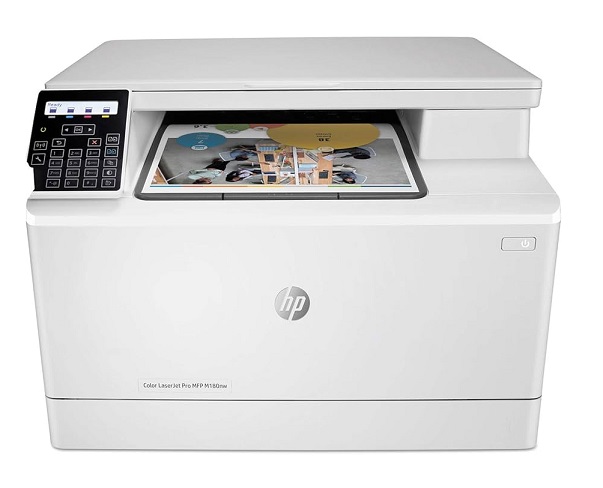

HP Color LaserJet Pro M154a, M154nw, M155a, M155nw, MFP M180n, MFP M180nw, MFP M181fnw, MFP M181fw Series

🖨️ HP Color LaserJet Pro M154, M155, MFP M180, MFP M181 Series

Product Specification: Compact 16-17ppm entry-level business color laser printing engines and desktop multi-function copiers utilizing a synchronized inline single-pass transfer architecture.
Production Year Range: Core Small-Business Series (Introduced 2018 / Maintained as an active SME contract leasing standard through 2026 fleet pools across Malaysia).
Usage Profile: Small-to-medium enterprise desks, accounting firms, medical clinics, boutique real estate hubs, and retail reception checkpoints.

🔧 Part Description
🔢 Product Code
📋 Model Compatibility
🖼️ Part Photo
1. Black Toner Cartridge (204A)
CF510A (HP 204A)
M154a, M154nw, MFP M180n, MFP M180nw, MFP M181fw (1.1K pages)
2. Cyan/Magenta/Yellow Toners (204A)
CF511A / CF513A / CF512A
M154a, M154nw, MFP M180n, MFP M180nw, MFP M181fw CMY Track (900 pages)
3. Black Toner Cartridge (205A)
CF530A (HP 205A)
LaserJet Pro M155a, M155nw Regional Software Lock (1.1K pages)
4. Cyan/Magenta/Yellow Toners (205A)
CF531A / CF533A / CF532A
LaserJet Pro M155a, M155nw Regional Software Lock CMY Track (900 pages)
5. Intermediate Transfer Belt (ITB Assembly)
RM2-5907
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Shared Architecture
6. Intermediate Transfer Secondary Roller
RM2-1662-000CN
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Shared Architecture
7. Toner Waste Collection Container Unit
RM2-1683-000CN
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Shared Architecture
8. Fuser Assembly 220v
RRM2-5582,RM2-2500 (Simplex)
220V-240V Only
M154a, M154nw, M155a, M155nw, MFP M180n, MFP M180nw, MFP M181fw
9. Fuser Fixing Film Sleeve
M154-FUSER-FILM
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Shared Architecture
10. Fuser Pressure Lower Roller
LPR-M154-000
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Shared Architecture
11. MP Tray 1 Pickup Roller
RM2-5576
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Shared Architecture
12. Cassette Tray 2 Pickup Roller
RM2-1691-000CN
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Shared Architecture
13. Separation Pad
RM2-1693-000CN
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Shared Architecture
14. Paper Pickup Feed Lifter
RM2-1689-000CN
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Internal Track
15. Paper Feed Registration Roller Assembly
RM2-1655-000CN
M154a, M154nw, M155nw, MFP M180n, MFP M181fw Alignment Track
16. ADF Pickup Roller Tire Set
5851-7221 / F2A66-67905
Color LaserJet Pro MFP M180n, M180nw, M181fnw, M181fw Scanner Lids
17. Laser Scanner Unit (LSU)
RM2-1681-000CN
All M154, M155, M180, M181, M182, M183 Digital Color Lens Arrays
18. Formatter Board
T6B73-60001 (M181fw)
M154nw Base Logic: T6B52-60001
HP Color LaserJet Pro Entry Processing Logic Component Cards
19. Engine Controller Board (ECU Card)
RM2-1634-000CN
All M154, M155, M180, M181, M182, M183 Engine Base Blocks
20. Power Supply Unit (PSU Board)
RM2-8231-000CN
220V Regional Spec
All M154, M155, M180, M181, M182, M183 Main AC Input Cards
21. High-Voltage Power Board (HVPS)
RM2-1632-000CN
All M154, M155, M180, M181, M182, M183 Static Color Charge Lines
22. Main Drive Motor
RM2-1635-000CN
All M154, M155, M180, M181, M182, M183 Gear Train Drives
23. Paper Feed Control Solenoid
RK2-8411-000CN
All M154, M155, M180, M181, M182, M183 Tray Induction Solenoids
