Epson LQ-2190, LQ-2180, LQ-2090, LQ-2080, LQ-1170, LQ-870, LQ-580, FX-2190 Printer Spare Parts

🖨️ Epson LQ-2190, LQ-2180, LQ-2090, LQ-2080, LQ-1170, LQ-870, LQ-580, FX-2190 Dot-Matrix Printer Spare Parts

Product Specification: Large-scale 24-pin heavy-duty long-carriage impact dot-matrix printing systems deployed for continuous accounting logs and multi-layer wide sheets.
Production Year Range: Core Commercial Series (Maintained as an active contract leasing standard through 2026 fleet pools across Malaysia).
Usage Profile: Major banking branches, customs clearing shipping ports, central logistics hubs, and government registry decks.

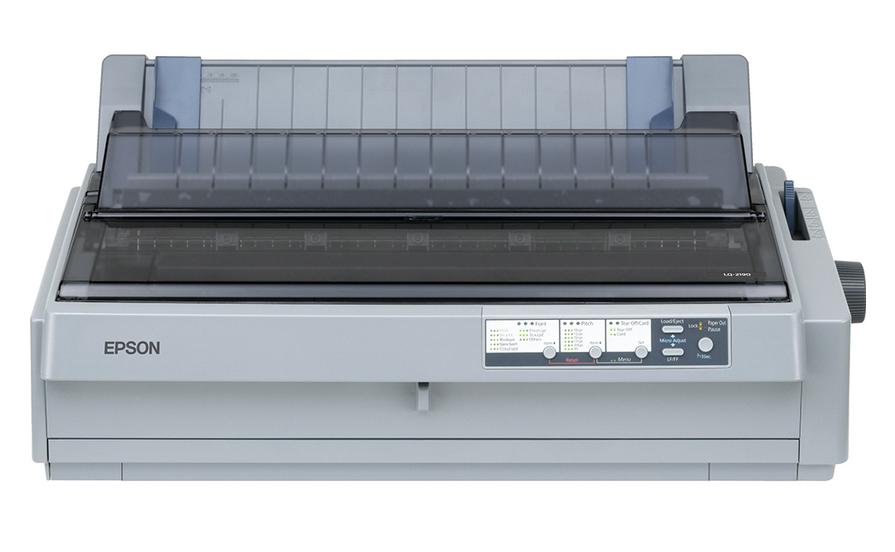

Epson LQ-2190 Printer
🔧 Part Description
🔢 Product Code
📋 Model Compatibility
🖼️ Part Photo
1. Black Fabric Ribbon Cartridge
C13S015336 / S015336
LQ-2190 Heavy-Duty Wide Platform (15 Million Characters)
2. 24-Pin Impact Printhead
1611796 / F060000
LQ-2190 Long-Carriage High-Impact Pin Core Replacement Assembly
3. Formatter Board (Motherboard Core)
2154638
LQ-2190 Interface Processing Logic Card Block
4. Printhead Cable Assembly
2128691
LQ-2190 Flex Data Head Connection Ribbons
5. Upper Printhead Cable Support Guide
1519972
LQ-2190 Upper Carriage Cable Tracking Guide Rail
6. Power Supply Unit (PSU Board)
2208943
Voltage: 220V Regional Spec
LQ-2190 Central AC Input Transformer Distribution Module
7. Rear Wiring Harness Module
2128693
LQ-2190 Rear Panel Interface Connection Loom
8. Sensor Cable PW Assembly
2128685
LQ-2190 Interconnect Data Loom for Internal Detection Elements
9. Continuous Dual Tractor Assembly
1858248 / 1836564
LQ-2190 Left/Right Synchronized Pin-Feed Sprocket Core
10. Platen Roller Assembly
1532916
LQ-2190 Central Compression Roller Cylinder Core
11. Paper Eject Assembly (Paper Cutter)
1521012
LQ-2190 Integrated Document Tear-Off Output Bar
12. Paper Guide Deflector Tray
1519929
LQ-2190 Main Single-Sheet Infeed Feed Deck Plate
13. Paper Guide Support Bracket
1575244
LQ-2190 Sheet Feeder Insertion Rest Base Support
14. Ribbon Drive Gear Transmission Module
1679355
LQ-2190 Fabric Cartridge Advancement Transmission Module
15. Ribbon Mask Shield Core
1479450
LQ-2190, LQ-2180 Anti-Smudge Protection Shield Gate
16. Ribbon Mask Holder Block
1596188
LQ-2190 Carriage Gate Shield Lock Retainer
17. Paper Path Registration Sensor flag
1005727
LQ-2190, LQ-2090, LQ-2080, LQ-1170, LQ-870, LQ-580 Rear Paper Track Detecor
18. Carriage Platen Roller Bushing 8 (Right)
1025285
LQ-2190 Right Side Core Stabilizer Bearing Block
19. Power Toggle Front Harness Switch
2128688
LQ-2190 On/Off Rocker Power Interconnect Front Cable Loom
20. Alternative System On/Off Power Switch
2133591
LQ-2190 Alternative Production Batch Internal Power Interconnect
21. Mechanical Frame Torsion Spring
1025325
LQ-2190 Chassis Pressure Equalization Spring Component
22. Platen Cylinder Advancement Manual Knob
1520609
LQ-2190 Side Roller Gear Manual Advancement Dial Wheel
