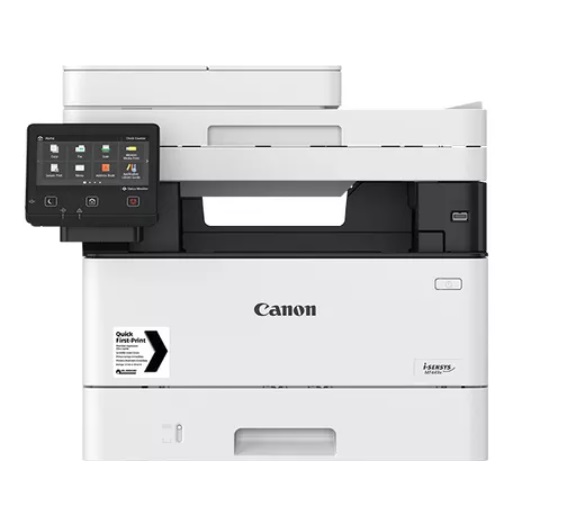

🖨️ Canon imageCLASS LBP223, LBP226, LBP228, LBP236, MF441, MF442, MF443, MF445, MF446, MF448, MF449, MF455 Series
Product Specification: Commercial-class 38ppm monochrome desktop laser systems and smart MFPs sharing mutual mechanical setups, paper tracks, and 220V engine grids.
Production Year Range: Core Business Portfolio (Maintained as an active contract leasing standard through 2026 fleet pools across Malaysia).
Usage Profile: Corporate office workgroups, bank checkout desks, administrative checkout stations, and logistics hubs running dense text printing cycles.
🔧 Part Description
🔢 Product Code
📋 Model Compatibility
🖼️ Part Photo
1. Standard Toner Cartridge (057)
3009C001 / CRG-057
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw
2. High-Yield Toner Cartridge (057H)
3010C001 / CRG-057H
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw
3. Integrated Imaging Drum Core
Integrated inside Cartridge
All Shared Core Engine Chassis Configurations
4. Laser Scanner Unit (LSU)
RM2-2144-000CN / RM2-2144
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw
5. Fuser Assembly 220v
FM1-W116-000, FM1-V137
220V-240V Only
220V-240V Only
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw
6. Fuser Fixing Film Sleeve
FM1-W116-000, FM1-V137-FILM
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw
7. Fuser Pressure Lower Roller
LPR-LBP226-000
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw
8. Cassette Tray 2 Pickup Roller
RM2-5452-000CN
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw Drawers
9. Separation Roller
RM2-5741-000CN
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw Torque Blocks
10. Paper Pickup Feed Lifter
RM2-2505-000CN
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw Decks
11. Deliver Upper Outfeed Sensor Flag
RM2-5654-000CN
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw Paths
12. Power Supply Unit (PSU Board)
RM2-2512-000CN
220V Regional Spec
220V Regional Spec
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw Main Transformers
13. Main Drive Motor
RM2-2531-000CN
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw Gearboxes
14. Paper Feed Control Solenoid
RK2-6242-000CN
LBP223dw, LBP226dw, LBP228x, LBP236dw, MF441dw, MF442dw, MF443dw, MF445dw, MF446x, MF448dw, MF449dw, MF455dw Clutches
15a. Formatter Board (LBP223dw)
FM1-W142-000 / FK4-4924
Canon imageCLASS LBP223dw Single-Function Base Wireless Logic PCB
15b. Formatter Board (LBP226dw)
FM1-W144-000 / FK4-4928
Canon imageCLASS LBP226dw Workgroup Logic Core Controller Board
15c. Formatter Board (LBP228x)
FM1-W146-000 / FK4-4932
Canon imageCLASS LBP228x MEAP Secure Integration Architecture PCB
15d. Formatter Board (LBP236dw)
FM1-X658-000 / FK4-4936
Canon imageCLASS LBP236dw Next-Gen Duplex Wireless Controller Board
15e. Formatter Board (MF441dw/MF443dw)
FM1-W209-000
Canon imageCLASS MF441dw / MF443dw Shared Entry Multi-Function PCB
15f. Formatter Board (MF445dw)
FM1-V980-000 / FE4-7128
Canon imageCLASS MF445dw Touchscreen System Master Logic Block
15g. Formatter Board (MF449dw)
FM1-V983-000
Alt Code: FM1-V983
Alt Code: FM1-V983
Canon imageCLASS MF449dw Enterprise Network Core Logic Mainboard
15h. Formatter Board (MF455dw)
FM1-X569-000
Alt Code: FM1-X569
Alt Code: FM1-X569
Canon imageCLASS MF455dw Touchscreen System Master Logic Block
15i. Formatter Board (MF446x)
FM1-V981-000
Alt Code: FM1-V981
Alt Code: FM1-V981
Canon imageCLASS MF446x Corporate Secure Network Logic Module
