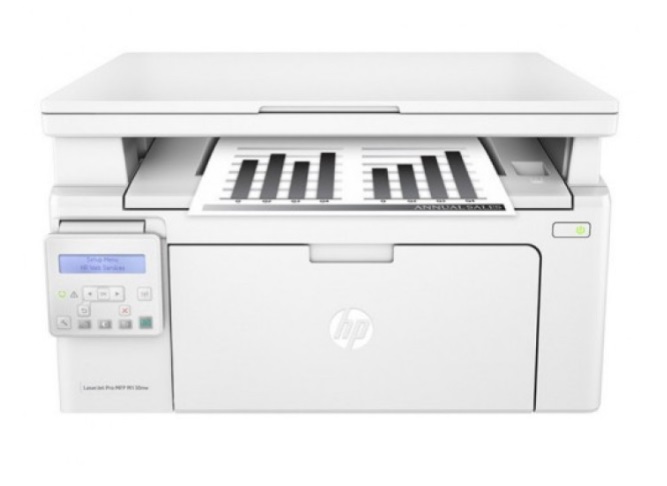

HP LaserJet Pro MFP M130a, M130fn, M130fw, M130nw, M132a, M132fn, M132fp, M132fw, M132nw, M134a, M134fn Printer Parts

🖨️ HP LaserJet Pro MFP M130, M132, M134 Series Fleet

Product Specification: Entry-level monochrome multi-function copiers running a 22-23ppm engine block with distinct, separate cartridge-to-imaging-drum internal carriage assemblies.
Production Year Range: Active SME Fleet Portfolio (Introduced 2017 / Maintained as an active contract leasing standard through 2026 fleet pools across Malaysia).
Usage Profile: Medical clinic registration desks, checkout counters, logistics desks, and corporate departmental satellite workstations.

🔧 Part Description
🔢 Product Code
📋 Model Compatibility
🖼️ Part Photo
1. Standard Toner Cartridge (17A)
CF217A (HP 17A)
MFP M130a, MFP M130fn, MFP M130fw, MFP M130nw
2. Standard Toner Cartridge (18A)
CF218A (HP 18A)
MFP M132a, MFP M132fn, MFP M132fp, MFP M132fw, MFP M132nw
3. Drum 19A
CF219A (HP 19A)
All MFP M130 and MFP M132 Series Variants
4. High-Yield Toner Cartridge (33A)
CF233A (HP 33A)
LaserJet Ultra MFP M134a, MFP M134fn
5. Drum 34A
CF234A (HP 34A)
LaserJet Ultra MFP M134a, MFP M134fn
6. Internal Developer Roller
M130-DEV-ROLLER
MFP M130, M132, M134 Series Core Engines
7. Fuser Assembly 220v
RM2-1652, RM2-6948
220V-240V Only
All MFP M130, M132, M134 Multi-Function Variants
8. Fuser Fixing Film Sleeve
M102-FUSER-FILM
All MFP M130, M132, M134 Heating Assemblies
9. Fuser Pressure Lower Roller
LPR-M102-000
All MFP M130, M132, M134 Heating Assemblies
10. Paper Separation Roller
RL2-1325-000CN
All MFP M130, M132, M134 Lower Cassettes
11. Separation Pad
RM2-9312-000CN
All MFP M130, M132, M134 Lower Cassettes
12. Paper Feed Registration Roller Assembly
RM2-9311-000CN
MFP M130, M132, M134 Synchronized Path Blocks
13. Paper Registration Sub-Bushings
M102-REG-BUSHING
MFP M130, M132, M134 Tracking Anchors
14. Paper Pickup Feed Lifter
RL1-2593, RL1-2593
MFP M130, M132, M134 Entry Feed Base
15. ADF Document Feed Input Pickup Roller
W1A80-67903
M130fn, M130fw, M132fn, M132fw, M134fn Copier Lids
16. ADF Document Document Separation Pad
W1A80-67901
M130fn, M130fw, M132fn, M132fw, M134fn Copier Lids
17. Deliver Upper Outfeed Sensor Flag
M102-EXIT-FLAG
MFP M130, M132, M134 Internal Paper Core Exit
18. Laser Scanner Unit (LSU)
RM2-9135-000CN
All MFP M130, M132, M134 Copier Series Digital Lenses
19. Formatter Board
G3Q58-60001 (M130fw)
M130a Network Card: G3Q57-60001
HP LaserJet Pro MFP Specific Main Processing Boards
20. Engine Controller Board (ECU Card)
RM2-9154-000CN
All MFP M130, M132, M134 Copier Sub-controllers
21. Power Supply Unit (PSU Board)
RM2-8178-000CN
Voltage: 220V Regional Spec
All MFP M130, M132, M134 Main Transformers
22. High-Voltage Power Board (HVPS)
RM2-8179-000CN
All MFP M130, M132, M134 Static Charge Lines
23. Main Drive Motor
RM2-8175-000CN
All MFP M130, M132, M134 Core Transmission Systems
24. Paper Feed Control Solenoid
RK2-8411-000CN
All MFP M130, M132, M134 Clutch Relays
